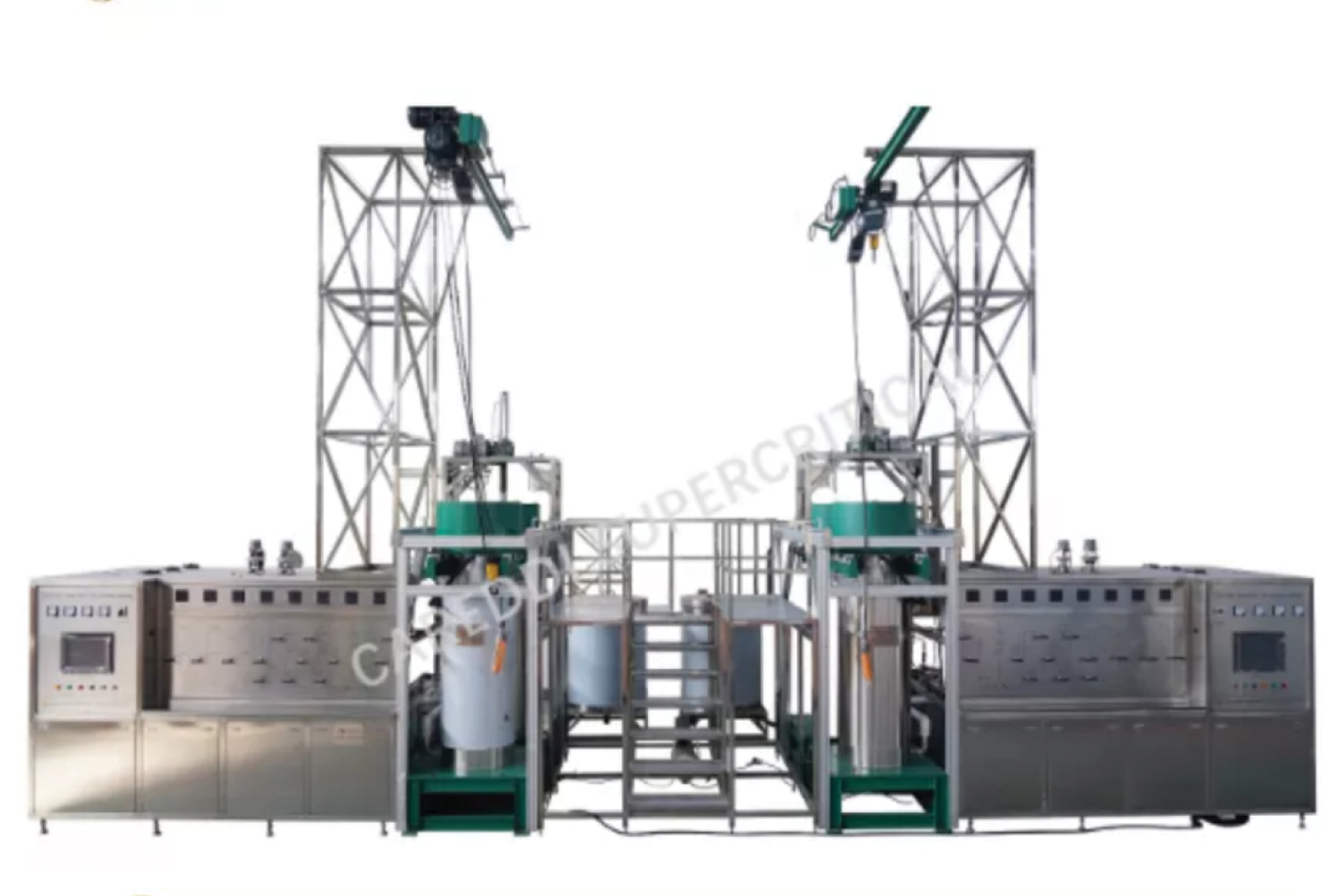

Supercritical CO2 Extraction Machine 300L(150Lx2) Model

The Supercritical CO₂ Extraction Machine – 300L (150L × 2) Model is a large-scale, industrial-grade system designed for high-throughput extraction of essential oils, plant actives, and other bioactive compounds. It features two extraction vessels, each with a 150-liter capacity, engineered to operate at pressures up to 45MPa and temperatures up to 80°C. The system is equipped with dual separation vessels, a high-flow CO₂ plunger pump, co-solvent pump, water circulation units, chillers, heat exchangers, and a CO₂ recovery system. All components are made from corrosion-resistant stainless steel 304 for long-term durability and compliance with hygiene standards. A fully integrated touchscreen control system allows precise operation, temperature and pressure regulation, and real-time data acquisition. This model is ideal for commercial-scale production in industries such as pharmaceuticals, food processing, cosmetics, nutraceuticals, and natural product extraction.

Sn.	Part Description	Technical Parameters	QTY
1	Extraction Vessel	Volume: 150L + 150L Designed pressure: 40MPa Maximum work pressure: 38MPa Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable Equipped with material barrel for both liquid and solid material	2
2	Material Cylinder	Material: Stainless steel 304	3
3	Separation Vessel	Volume: Separation Vessel 1: 27L Separation Vessel 2: 17L Separation Vessel 3: 17L Maximum work pressure: 25MPa Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable	3
4	CO₂ High pressure pump	Triple plunger pump Flow rate: 1000L/H (frequency adjustable) Maximum work pressure: 40MPa Pump head with cooling system	1
5	Solvent pump	Flow rate: 0.25–20L/H (frequency adjustable) Maximum work pressure: 40MPa	1
6	CO₂ Recovery system		1
7	Cooling system	Cooling capacity: 20000Kcal/h (air cooling) Temperature range: -5℃ ~ +5℃ (meet process requirement)	1
8	Heat exchange system	Material: Stainless steel 304 Type: Φ14/40MPa, Φ18/30MPa With circulating water jacket heating system, adjustable temperature	5
9	Purification system	Volume: 5L Material: Stainless steel 304 Maximum work pressure: 16MPa	1
10	CO₂ Storage tank	Volume: 102L Material: Stainless steel 304 Maximum work pressure: 8MPa	1
11	Flow rate meter	1200L/16MPa Digital indicator showing instant and accumulated flow	1
12	Temperature control system	Temperature range: Room temperature ~ 85℃ adjustable Accuracy: ±1℃	5
13	Pressure control system	Pressure gauge at high pressure pump outlet Overpressure protection	2
14	Computerized touch screen		1
15	Siemens PLC		1
16	Safety valves	Located on extraction and separation vessels Automatic overpressure relief	6
17	Over-pressure gauge	Pressure gauge at high pressure pump outlet Overpressure protection	1
18	Control panel	Material: Stainless steel 304	1
19	Main Machine Frame & Operation Desk	Material: Stainless steel 304	1
20	Operation Platform	Material: Carbon steel	1
21	Quick Opening Structure	Material: Stainless steel 304	2
22	Hoist	Electric hoist	1
23	Pipelines	Valves, fittings: DW14, DW18 All fluid-contact parts are made of 1Cr18Ni9Ti stainless steel	1
