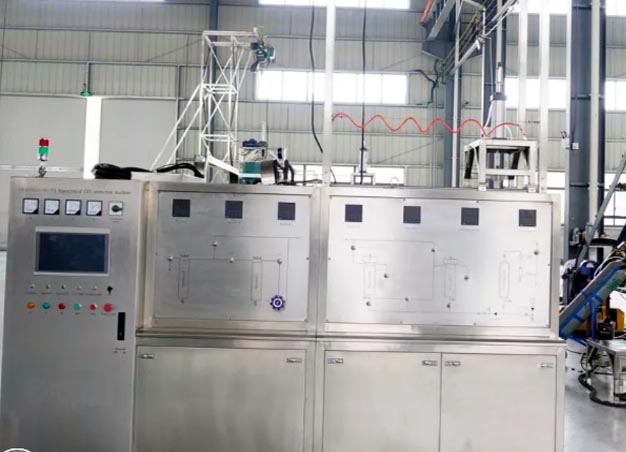

Supercritical CO2 Extraction Machine 50L(25Lx2) Model

The Supercritical CO₂ Extraction Machine – 50L (25L × 2) Model is a robust and efficient system engineered for extracting high-purity bioactive compounds using supercritical fluid technology. It includes two 25-liter extraction vessels with a maximum working pressure of 35MPa and temperature of 80°C. The setup also features dual separation vessels, a triple-plunger CO₂ high-pressure pump with 400L/h flow rate, a co-solvent pump, water pumps, chiller, heat exchangers, CO₂ recovery pumps, and a 100L CO₂ storage tank. All components are made from durable stainless steel 304 to ensure long-term operation and product safety. The machine integrates a touchscreen-based control and data acquisition system for easy operation, precise control, and data recording. This model is ideal for applications in the food, pharmaceutical, cosmetic, and herbal industries where clean and solvent-free extraction is essential.

S.No	Name	Specification	QTY
1	Extraction Vessel	Volume: 25L × 2 (Single vessel is 25L) Design pressure: 40MPa; Max work pressure: 35MPa Design temperature: 85℃; Max work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circulating heating system, temperature adjustable	2
2	Separation 1	Volume: 17L Design pressure: 25MPa; Max work pressure: 20MPa Design temperature: 85℃; Max work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circulating heating system, temperature adjustable	1
3	Separation 2	Volume: 15L Design pressure: 25MPa; Max work pressure: 20MPa Design temperature: 85℃; Max work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circulating heating system, temperature adjustable	1
4	Cylinders	Material: Stainless steel 304 (SS316 optional if needed) Load of extraction raw materials	3
5	CO₂ High Pressure Pump	Triple plunger pump Flow rate: 400L/h (frequency adjustable) Delivers CO₂ into the system and increases pressure	1
6	Co-solvent Pump	4L/h, pumps co-solvent into system	1
7	Water Pumps	Pumps water from tank into vessel jacket for circulation	sets
8	Air Compressor	0.7MPa, supplies compressed air	1
9	CO₂ Recovery Pump	Recovers CO₂ below 6MPa	3
10	Chiller	Chills gaseous CO₂ to liquid CO₂ and cools main pump head	1
11	Heat Exchange System	Material: Stainless steel 304 Design pressure: 40MPa	3
12	Filter	Material: Stainless steel 304 Volume: 5L; Design pressure: 20MPa	1
13	Mixer	Material: Stainless steel 304 Volume: 3L; Design pressure: 40MPa	1
14	CO₂ Storage Tank	Material: Stainless steel 304 Volume: 100L; Max working pressure ≤ 16MPa	1
15	CO₂ Cylinder Rack	Material: Stainless steel 304, vertical or horizontal	1
16	Coal Charger	To carriage material loading cylinders	1
17	Flow Meter	Flow range: 0–1000L/h (Displays instantaneous flow)	1
18	Temperature Control System	Control range: Room temperature ~ 85℃ Accuracy: ±1℃
19	Safety Protection System	Safety valves on extraction vessels, separation vessels, CO₂ high pressure pump, and storage tank to prevent overpressure
20	Pipeline Valves	High pressure pipelines and valves, process water valves and pipelines, check valves, back pressure valves
21	Equipment Bracket	Material: Stainless steel 304	1
22	Data Acquisition and Control System	Touch screen interface Controls extraction and separation temperatures Starts/stops CO₂ high pressure pump and co-solvent pump Data storage and output	1
