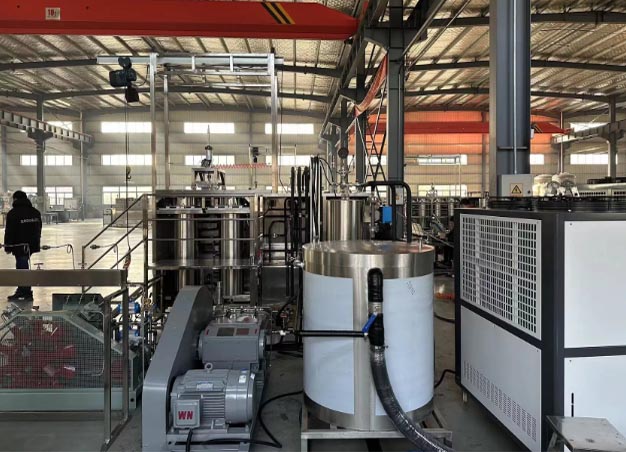

Supercritical CO2 Extraction Machine 60L(30Lx2) Model

The Supercritical CO₂ Extraction Machine – 60L (30L × 2) Model is a high-performance industrial extraction system designed for the efficient extraction of essential oils, plant compounds, and active ingredients. It features two extraction vessels, each with a capacity of 30 liters, operating at a maximum pressure of 50MPa and temperature up to 80°C. The system includes dual separation vessels, a CO₂ high-pressure pump, co-solvent pump, chiller, heat exchange system, and CO₂ recovery unit. Built entirely from stainless steel 304, it ensures hygiene, durability, and corrosion resistance. Safety is enhanced with pressure relief valves and an integrated temperature control system. A touchscreen-based control system allows for precise operation, data monitoring, and automatic control of the process. This model is ideal for commercial applications in pharmaceuticals, food, cosmetics, and natural product industries.

S.No	Name	Specification	QTY
1	Extraction Vessel	Volume: 30L × 2 (Single vessel is 30L) Design pressure: 55MPa; Max work pressure: 50MPa Design temperature: 85℃; Max work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circulating heating system, temperature adjustable	2
2	Separation 1	Volume: 15L Design pressure: 25MPa; Max work pressure: 18MPa Design temperature: 85℃; Max work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circulating heating system, temperature adjustable	1
3	Separation 2	Volume: 10L Design pressure: 25MPa; Max work pressure: 18MPa Design temperature: 85℃; Max work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circulating heating system, temperature adjustable	1
4	Cylinders	Material: Stainless steel 304 (SS316 optional if needed) Load of extraction raw materials	3
5	CO₂ High Pressure Pump	Triple plunger pump Flow rate: 600L/h (frequency adjustable) Delivers CO₂ into the system and increases pressure	1
6	Co-solvent Pump	4L/h, pumps co-solvent into system	1
7	Water Pumps	Pumps water from tank into vessel jacket for circulation	sets
8	Air Compressor	0.7MPa, supplies compressed air	1
9	CO₂ Recovery Pump	Recovers CO₂ below 6MPa	3
10	Chiller	Chills gaseous CO₂ to liquid CO₂ and cools main pump head	1
11	Heat Exchange System	Material: Stainless steel 304 Design pressure: 40MPa	3
12	Filter	Material: Stainless steel 304 Volume: 5L; Design pressure: 20MPa	1
13	Mixer	Material: Stainless steel 304 Volume: 3L; Design pressure: 40MPa	1
14	CO₂ Storage Tank	Material: Stainless steel 304 Volume: 29L; Max working pressure ≤ 16MPa	1
15	CO₂ Cylinder Rack	Material: Stainless steel 304, vertical or horizontal	1
16	Coal Charger	To carriage material loading cylinders	1
17	Flow Meter	Flow range: 0–1000L/h (Displays instantaneous flow)	1
18	Temperature Control System	Control range: Room temperature ~ 85℃ Accuracy: ±1℃
19	Safety Protection System	Safety valves on extraction vessels, separation vessels, CO₂ high pressure pump, and storage tank to prevent overpressure
20	Pipeline Valves	High pressure pipelines and valves, process water valves and pipelines, check valves, back pressure valves
21	Equipment Bracket	Material: Stainless steel 304	1
22	Data Acquisition and Control System	Touch screen interface Controls extraction and separation temperatures Starts/stops CO₂ high pressure pump and co-solvent pump Data storage and output	1
